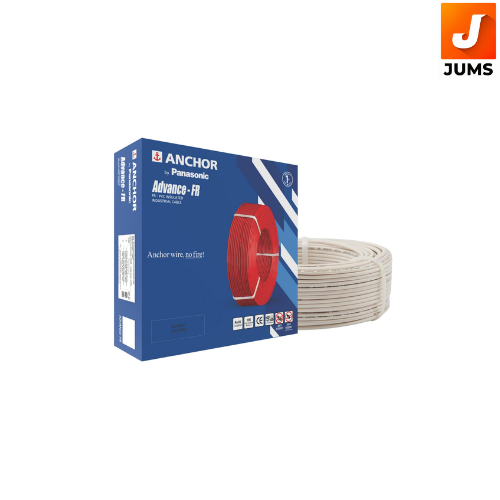

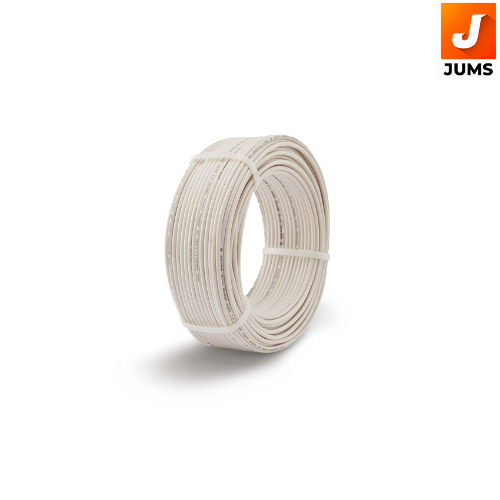

Anchor Advance FR 1 sq mm White 90 m FR PVC Insulated Wire

(0) Review

₹3,114

Brand Anchor ISIN EW3HZWNGCZ Offer ID 1014819689 Brand Collection Name Advance FR Brand Model Number 27390WH Size 1 sq mm Brand Colour White Length 90 m Voltage 1100 V Rated Current 12 A Conductor Type Stranded Conductor Material Copper Insulated Material FR PVC Core 1 Core Certification IS: 694 Usage Residential Pack Of 1 Warranty Not Applicable Country of Origin India

Available Options Color

Category :Electricals

Sub Category :Wires & Cables

Stock : 10

First in India, Anchor introduced Advance FR (Flame Retardant) wire confirming to IS 694, 1100V (1.1 KV) with specially formulated proprietary PVC compound giving exceptional flame retarding properties to the insulation. It has higher oxygen index (LOI) of 30% and temperature index of 3000C against specified category C1 values of 29% and 2500C respectively.

Flame Retardant (FR) Insulation – Special FR PVC insulation prevents fire propagation and improves electrical safety.
High Oxygen Index (30% LOI) – Provides better resistance to fire compared to ordinary wires.
100% Electrolytic Grade Copper Conductor – Ensures excellent electrical conductivity and efficient power flow
High Insulation Resistance – Reduces leakage current and increases electrical safety.
Anti-Rodent & Anti-Termite Protection – Special insulation helps protect the wire from rodent and insect damage.
Conforms to IS 694:2010 Standards – Meets Indian electrical safety and quality standards

Brand:	Anchor
Product Name	Advance FR Building WiRE
Wire Type	FR (Flame Retardant) PVC Insulated Wire
Length:	90 meters
Colour	White
Conductor Material:	100% Electrolytic Copper
Conductor Type	: Multi-strand (Flexible)
Voltage Rating:	1100 V (1.1 kV)
Current Rating:	Approx. 12 A
Oxygen Index (LOI)	Around 30% (high flame resistance)
Temperature Index:	Around 300 °C
